Appliance Repair Tools
« on: July 25, 2008, 12:07:05 PM »

Used on all Maytag top-loader washers.
Cross Reference and Model Information
Part Number 22038313 (AP3856712) replaces 038313, 70110, 38313.

PRO TJ90TB123A Spanner Wrench, AP4503397

TB123A Spanner wrench - Spanner wrench for removing spanner nut on Whirlpool, GE and Maytag washing machines. Adapter ring is used on GE models.

Replaces: 123931, WB5X1325, 22038313, 22002383 & 22003439

NIS 35-2968 Spanner Wrench Basket Drive Hub, AP3854730

Spanner wrench basket drive hub

For Maytag Atlantis, Performa model top load washers.

NIS 22002898 Tool, Nut Seal, AP3873487

For agitator seal on Maytag Atlantis & Performa (Holes fit Hub Tool)

NIS 22002922 Spring Removal Tool, AP3854720

Removes and installs springs on Maytag Atlantis and Performa models washers.

Cross Reference and Model Information
Part Number 22002922 (AP3854720) replaces 12001188, 21001138, 70103.

NIS 12002012 Brake & Bearing Removal Tool Kit, AP3854725

For Maytag Atlantis, Performa and Amana model washers.

Cross Reference and Model Information
Part Number 12002012 (AP3854725) replaces 35-2442, 70102, LA-2004, LA2004.

NIS 038315 Tool, Brake Pkg Assy, AP3856708

Used to remove the wet brake rotor assembly on the Maytag LAT and LAV Dependable Care Platform model washers.

Cross Reference and Model Information

Part Number 038315 (AP3856708) replaces 38315, 70109.

LG 383EER4001A Plier, Washing Machin, AP4438623

Used to remove the outer door gasket spring on a LG washer.

LG 383EER4004A Tub Clamp Jig, W M to, AP4439038

Used to remove the inner door gasket spring on a LG washer.

GE WX05X10102 Belt Install Tool, AP3968441

ERP Linteater Kit, part number: AP4531503

Linteater Kit - Dryer vent cleaning kit. Cleaning your dryer vent can prevent fires and reduce drying times to save on utilities. Kit comes with 12 feet of flexible rods.

M-L Digital Multi - Meter, part number: AP3440648

Compact digital multi-meter. Fuse protected. Size: 5-1/2 inch x 3-1/4 inch. Carrying case included.

MCN Refrigerator Condenser Cleaning Brush, part number: AP4320046

This coil brush removes dust and other airborne particles caught in your refrigerator condenser coils. Its soft bristles will not harm coils but will provide you with cleaner coils that result in saved energy. Size: 28-inch overall length for hard-to-reach areas. Use this brush once a month to ensure clean coils that will help your refrigerator last longer and operate more efficiently.

M-L Digital Pocket Thermometer, part number: AP3440446

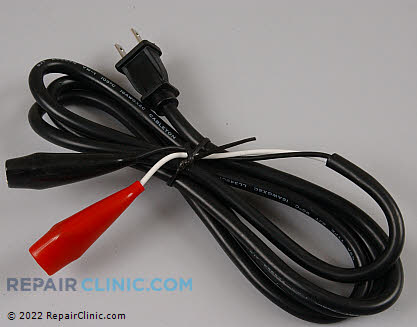

Test Cord TC103

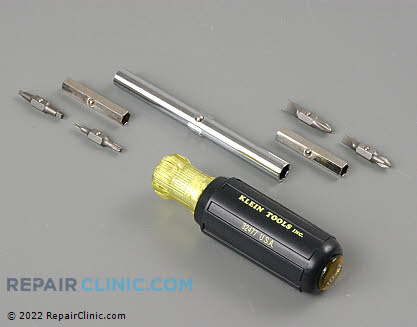

Perfect for your appliances, this essential, pro-quality 10 in 1 tool will remove most screws and nuts used in today’s appliances. 2 nutdrivers, 2 Phillips, 2 slotted, 2 Torx and 2 square drive bits.

Multi Screwdriver 32477-12

ERP THP-1 Hose Pliers, AP4429323

Water Test Strips 350924 Tabs - Test, AP3098567

Diagnostic Icemaker Tester IMT1 - For Modular Ice Makers
